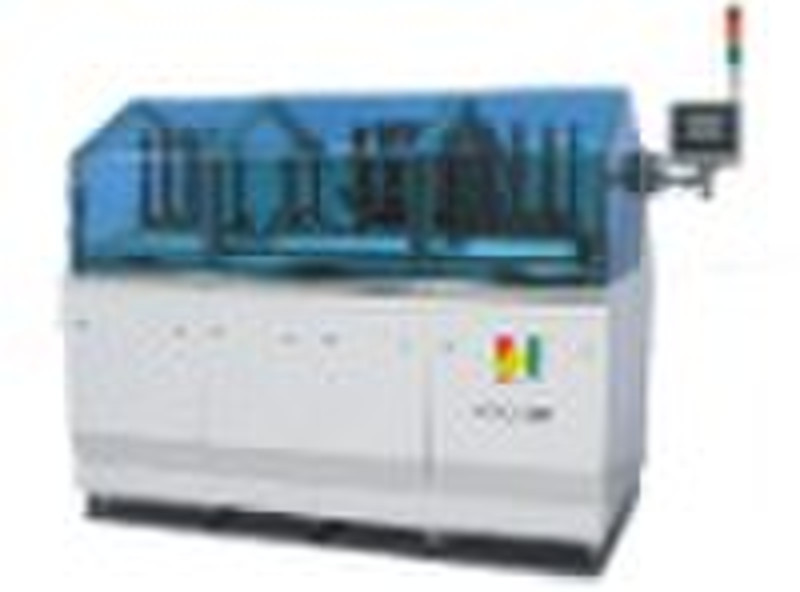

HDC5000 IC card slot milling implanting machine

Technical Feature:1.The high-speed ICCard Chip Milling&Implanting Machine,by advanced design conceptions,integrated traditionl and modern technipues,with reliable and stable performances,works accurately at high productivityand security.It`s convenient to operate and maintain,guarantees exact card chip slot milling and implanting accuracy,suitable for various IC cards.2.The machine is controlled by high accurate servo system,automatic positioning by micrometer-grade electronic caliber,automatic de-eletrostatic and unloading devices.3.The conveyor send the cards to positions at micrometer-grade accuracy.The card and chip sizes automatic inspection and feedback for automatic control and correction.The ATR inspection is eqquipped for defective card alarm and automatic reject.4.Dual-stage chip milling in closed vacuum,then polishing to remove burrs.5.The upper and lower card chip positioning surfaces are clan and smooth,free of stickers and dirties.6.By special image software,the desired chip shapes sizes are entered,editedand revised.7.The working temperature is kept constant by circulating water cooling system.8.Automatic IC card inspection rejects defectives.9.Optional automatic glue backing device or individual glue backing device.10.For all troubles and defetive rejections are eqquipped with instant alarms and records .11.With many intelligent property and patent technipues of our own company.12.Available are remote maitaince ,image edition and software upgrading service.13.The milling & implanting modules can be integrated together,or separated into two individual machines,both at 5000 cards/hour ,for convenient,flexible transportation and line configuration.Specifications:1.Productivity: approx.5000 pcs / hour for ISO 7816 standardcard.2. Card size: L 85.5mm X W 54 mm X Thick 0..5-0.8 mm.3.materials: ABS, PVS, etc.4.Overall accuracy:±0.01mm.5. Power supply: 220V,50/60Hz,6KW6. Air supply: dry,free of matter ,5 8Kg/cm2,1m3/h . Outline dimensions: 1900mmX800mmX1530mm. Gross weight: approx. 1000KG
